Inside the Package Powering Modern AI

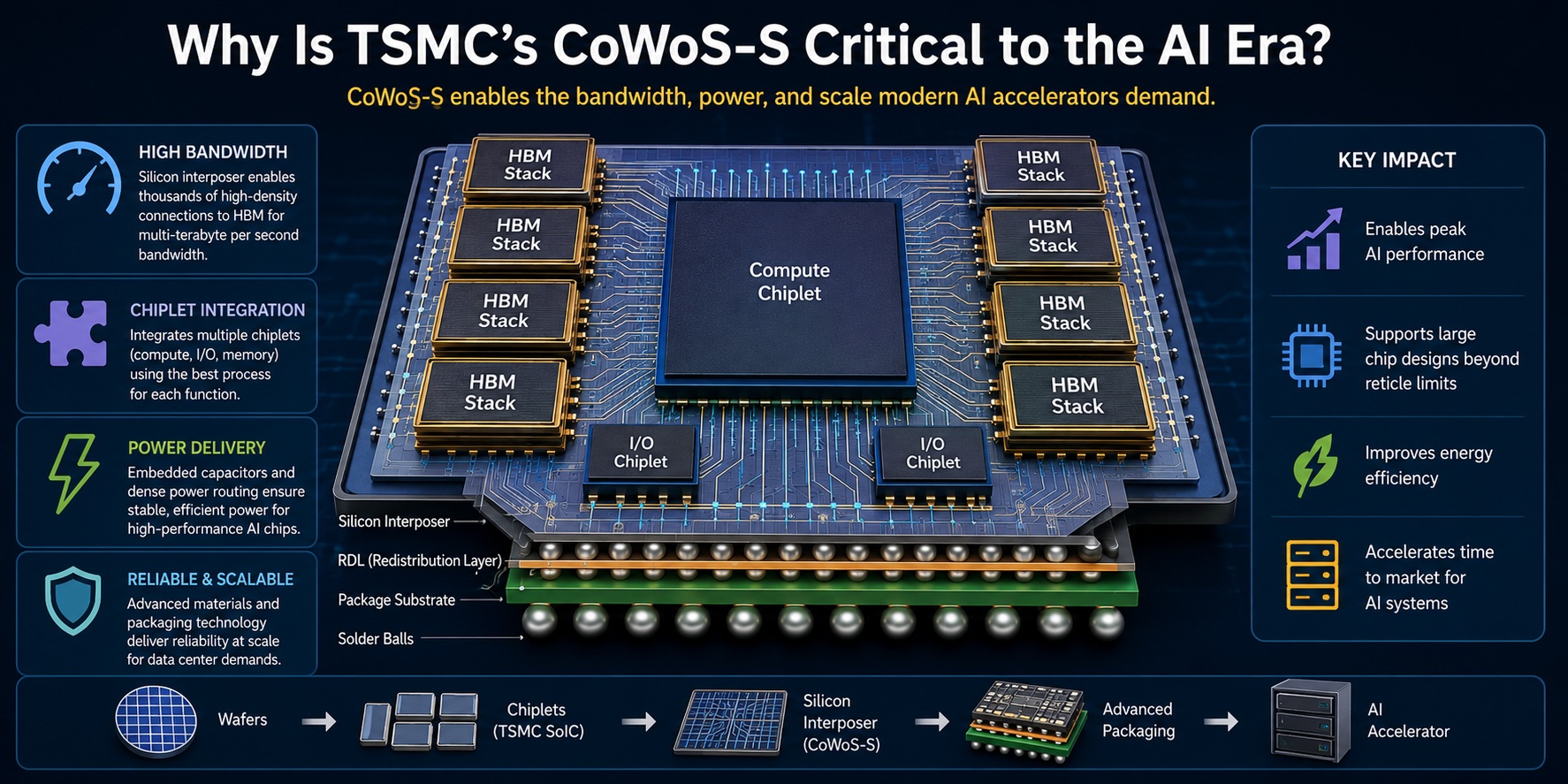

TSMC’s CoWoS-S is critical to the artificial intelligence era because it solves the central systems problem facing modern accelerators: computing capability is growing faster than conventional packages can supply data, power, and connectivity. CoWoS-S, meaning Chip-on-Wafer-on-Substrate with a silicon interposer, is a 2.5D integration platform that places large logic dies or chiplets beside multiple high-bandwidth-memory stacks, then connects them through dense wiring fabricated in silicon.

AI training and inference depend on moving enormous parameter, activation, and key-value-cache datasets between processors and memory. A leading-edge GPU may contain vast arithmetic throughput, but those units deliver useful performance only when memory bandwidth remains high and communication latency stays low. Ordinary organic substrates cannot provide enough fine-pitch interconnects between a processor and several HBM stacks. CoWoS-S uses a silicon interposer whose routing density is much closer to on-chip metallization. Thousands of short, wide parallel connections can therefore link logic and HBM, producing multi-terabyte-per-second memory interfaces with lower energy per transferred bit than board-level memory.

The interposer also enables integration beyond the lithographic reticle limit. Manufacturing one enormous monolithic die is constrained by exposure area, defect density, yield, and cost. CoWoS-S allows designers to divide a system into compute, input/output, cache, networking, or specialized chiplets and integrate known-good dies within one package. Each component can use the process node best suited to its function. Compute tiles may use an advanced node, while interface or analog functions use mature nodes. This heterogeneous approach improves yield, design reuse, product segmentation, and time to market without sacrificing package-level bandwidth.

Power delivery is equally important. AI accelerators draw extreme current and experience rapid load transients. Voltage droop can reduce clock frequency, corrupt operation, or force conservative power margins. CoWoS-S incorporates dense power-routing structures and embedded deep-trench capacitors in the silicon interposer. These capacitors provide local charge near the logic dies, improving power integrity at frequencies where motherboard capacitors and package components respond too slowly. Short interconnects also reduce parasitic resistance and inductance, supporting stable operation at high power.

Thermal and mechanical engineering make the platform difficult to reproduce. A large interposer carrying several dies must survive wafer processing, micro-bump bonding, molding, substrate attachment, thermal cycling, and sustained data-center operation. Differences in thermal expansion among silicon, copper, underfill, molding compounds, and organic substrates create warpage and stress. TSMC’s value lies not merely in the interposer concept, but in controlling materials, assembly accuracy, yield, test, reliability, and high-volume manufacturing across the entire process.

Scale further strengthens CoWoS-S. TSMC reports that the platform has been in production since 2012 and supports silicon interposers reaching approximately 3.3 times reticle size. Its fifth-generation implementation demonstrated an interposer of about 2,500 square millimeters, capable of accommodating multiple logic chips and eight HBM stacks. Such dimensions transform the package into a system-level integration platform rather than a protective enclosure.

Its maturity also lowers commercialization risk. Customers receive an ecosystem spanning design rules, interposer fabrication, die assembly, thermal solutions, electrical verification, and production testing. That integration shortens debugging cycles and makes multi-die accelerators manufacturable at hyperscale. Few suppliers can match the combination of leading-edge foundry access, packaging precision, capacity investment, and customer trust.

CoWoS-S is therefore a strategic bottleneck. Advanced logic wafers and HBM may be available, yet an AI accelerator cannot ship until those components are assembled, bonded, tested, and qualified as one reliable package. Packaging capacity consequently determines how quickly cloud providers can deploy new computing clusters. It also shapes accelerator architecture because interposer area, HBM placement, bump pitch, power density, substrate size, and cooling limits must be co-designed years before production.

Bottom line: The importance of CoWoS-S ultimately reflects a broader semiconductor transition. Transistor scaling remains valuable, but system performance increasingly depends on how efficiently multiple dies, memories, power networks, and communication links are integrated. In the AI era, the package has become part of the computing architecture. CoWoS-S is critical because it converts separately manufactured silicon into a tightly coupled, bandwidth-rich, energy-efficient computing system.
