What is the 3nm Pessimism Wall and Why is it An Economic Crisis?

Chip design is getting more difficult as technology advances. Everyone knows that. A lot of the discussion around these issues tends to focus on the demands posed by massive AI workloads and the challenges of shifting to heterogeneous multi-die design. While these create real problems, there is an underlying effect that is making the situation much worse than it needs to be: The ROI on advanced-node scaling is compressing in ways most teams do not yet quantify.

For three decades, Moore’s Law was an economic engine. Today, at 3nm and below, that engine is slowing. While foundries promise massive PPA (power, performance, and area) gains, the reality for most design teams is a “Performance Mirage.” Despite multi-billion-dollar investments in 3nm Gate-All-Around (GAA) and FinFET migrations, a large portion of the promised performance of these advances can be out of reach. It is often being sacrificed to “margin” reserved solely to compensate for modeling uncertainty. Let’s refer to this structural inflation of clock margin as the “Pessimism Wall”.

The good news is that this margin is not a law of physics.  It can be safely reclaimed and redirected toward real silicon limits. More on that shortly. But first let’s answer the question, what is the 3nm pessimism wall and why is it an economic crisis? The answer begins with understanding how margin accumulates – and why that accumulation has become economically consequential.

Anatomy of the Crisis

At 3nm, clock sign-off guard bands have exploded to 25–35% of the total clock period. This is not a choice; it is a structural consequence of abstraction-based sign-off methodologies. The following data highlights the mechanisms driving this structural margin inflation.

The data below reflects trends widely observed across advanced-node programs. While exact values vary by design, the structural pattern is consistent.

• The 2.5x Over-Design Trap: Applying 28nm-era sign-off assumptions to 3nm designs forces designers to over-design clock networks by 2.5x. You are often paying for buffers, area, and routing complexity that the silicon does not need.
• The Near-Threshold Danger Zone: As voltages approach device thresholds, delay behavior becomes exponential and non-linear. Standard static timing analysis (STA) over-linearizes these effects, forcing an “uncertainty tax” of 8–12% of the clock period just to remain “safe”.
• The Jitter Black Hole: Power-supply-induced jitter (PSIJ) and simultaneous switching now consume 5–10% of the margin. Traditional tools treat this as a static guess.

All these effects hide useful margin behind the pessimism wall.

A Closer Look at the Pessimism Wall

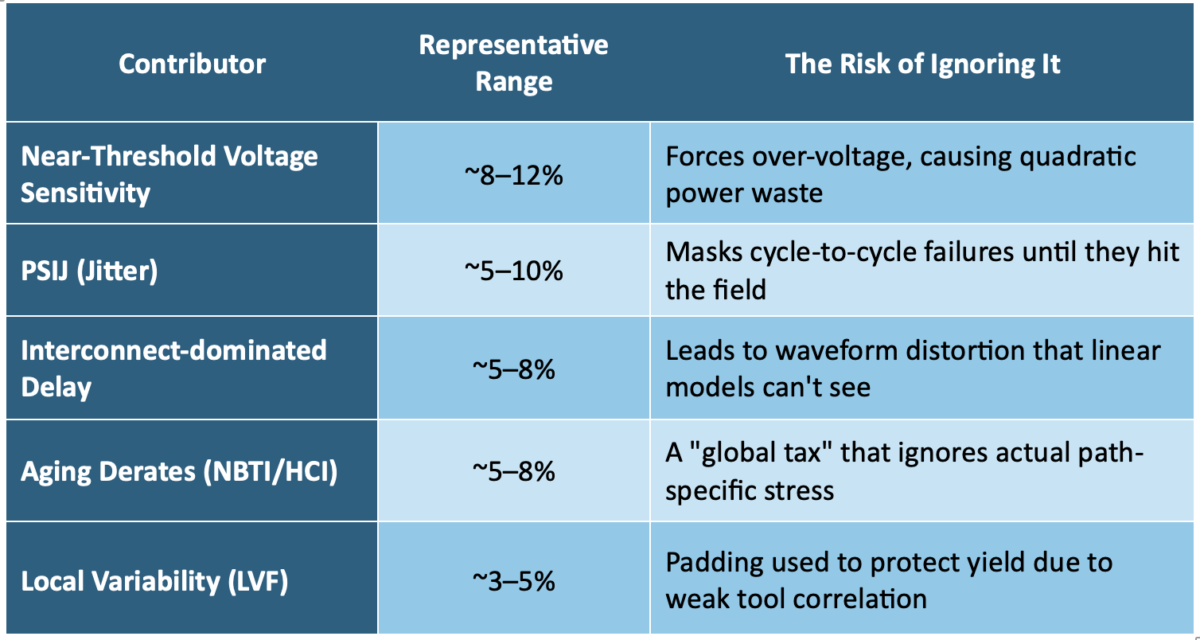

Every picosecond of unnecessary margin has a direct impact on the project’s bottom line. The following table breaks down the contributors that can cumulatively drive total clock margin toward ~25–35% range:

The contributors above are individually defensible and grounded in advanced-node physics. What creates the pessimism wall is their cumulative stacking.

In abstraction-based sign-off flows, voltage sensitivity, jitter, aging, and variability are typically evaluated independently and conservatively. Worst-case assumptions stack because electrical interactions are not jointly resolved in time and voltage.

The silicon did not become 35% worse. Our abstractions became cumulatively more conservative. To be clear, the issue is not transistor device models themselves. The structural pessimism arises from abstraction-based timing methodologies and independently stacked worst-case assumptions that approximate electrical behavior rather than directly solving it.

The Economic Consequences – A Crisis in the Making

Leaving 10–15% recoverable clock margin on the table is not a modeling inconvenience – it can be a massive competitive liability. Let’s look a bit closer at what’s involved.

• The Power Penalty: Because dynamic power scales with the square of voltage, a 10% reduction in margin translates to a ~18–20% reduction in dynamic clock power. Given that clock networks consume 30–40% of SoC power, this often determines whether a design leads its segment or thermally limits its own performance.
• The Revenue Loss (SKU binning): Reclaiming ~10% margin enables a 300 MHz boost on a 3 GHz target. In high-volume production, shifting even 10% of volume into a premium performance bin can represent hundreds of millions of dollars in incremental revenue currently sacrificed to uncertainty.
• Area Inefficiency: Abstraction-driven margin forces aggressive cell upsizing, leading to a 10–15% increase in clock tree area. This bloats die size and increases per-unit cost across millions of chips.
• Field Failures: The industry’s reliance on broad “Guard Bands” actually increases risk:
  – Masked Failures – Broad margins “hide” specific electrical failures—like rail-to-rail or duty-cycle issues – until they hit the field.
  – Aging Roulette – Applying “Global Aging Taxes” ignores path-specific stress, leading to chips that pass tapeout but degrade prematurely in the field.

The Solution: Full-Clock Physics Enforcement

The crisis stems from one fact: Models have stopped keeping up with physics.

The most direct way to address structural pessimism is to replace timing abstractions and estimates with electrical resolution by performing detailed, accurate SPICE analysis on the entire clock. Up to now, this wasn’t practical for two reasons. First, standard SPICE runs on networks of this size would take an unreasonable amount of time and consume vast (and expensive) compute resources. And second, standard SPICE can’t even load networks of this size.

The good news is that these barriers are now gone. The ClockEdge Veridian suite delivers a family of SPICE-accurate analysis engines for timing, power, jitter, and aging. And Veridian delivers sign-off precision at real-world speed, revealing interactions that conventional flows miss. This enables full-clock waveform fidelity across timing, power, jitter, and aging interactions.

Veridian engines enable billion-transistor, unreduced SPICE analysis performed overnight. Some of the benefits of this include:

• Eliminate Abstraction-Driven Guesswork: Enforce Kirchhoff’s Current and Voltage Laws across the entire netlist to eliminate table-lookup errors
• Expose Hidden Failures: Veridian identifies rail-to-rail and duty-cycle failures that traditional STA “masks” with margin until it is too late
• Path-Specific Aging: Stop applying global derates. Measure actual aged behavior to recover margin safely

The question is no longer whether the pessimism wall exists – physics proves it does. The question is whether your methodology is capable of exposing it before your competitor does.

 At advanced nodes, competitiveness is increasingly determined not by how much margin can be added, but by how much unnecessary margin can be safely removed.

The 3nm Pessimism Wall is not a silicon limitation – it is a modeling one.

The teams that resolve physics directly rather than approximate it will reclaim performance, power efficiency, and yield that others continue to surrender to uncertainty.

To Learn More

ClockEdge recently published a very informative white paper titled Reclaiming Margin in Advanced Nodes – Why Abstraction-Based Sign-Off Is Becoming the Dominant PPA Limiter at 3nm and Below.

This white paper is essentially a master class in how to preserve margin, performance and profits at advanced nodes. If you find yourself becoming a “slave” to ever-increasing design margins, this white paper is must-read. You can access your copy here. And that’s what the 3nm pessimism wall is and why it is an economic crisis.
