Revolutionizing Processor Design: Intel’s Software Defined Super Cores

Revolutionizing Processor Design: Intel’s Software Defined Super Cores
by Admin on 09-07-2025 at 2:00 pm

Key Takeaways

  • Intel's patent application for 'Software Defined Super Cores' (SDC) aims to enhance processor performance through a hybrid software-hardware solution, addressing inefficiencies of traditional high-performance cores.
  • SDC creates virtual super cores by virtually fusing multiple physical cores, allowing parallel execution of single-threaded programs while maintaining program order, thus decoupling performance gains from hardware scaling.
  • Key benefits of SDC include improved energy efficiency, flexibility in adapting between single-threaded and multi-threaded performance, and reduced reliance on advanced process technology, potentially democratizing high-performance computing.

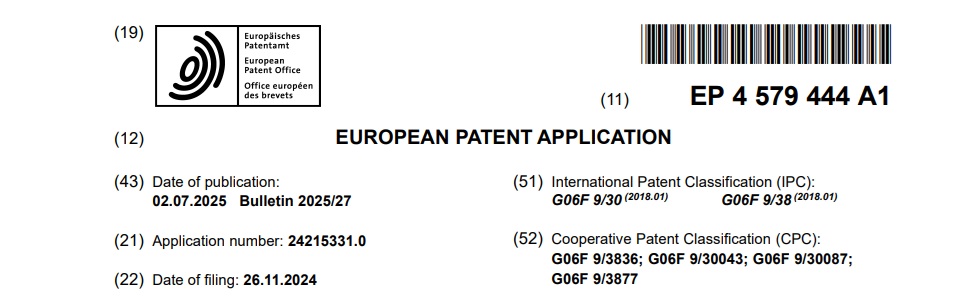

Intel European CPU Patent Application

In the ever-evolving landscape of computing, Intel’s patent application for “Software Defined Super Cores” (EP 4 579 444 A1) represents a groundbreaking approach to enhancing processor performance without relying solely on hardware scaling. Filed in November 2024 with priority from a U.S. application in December 2023, this innovation addresses the inefficiencies of traditional high-performance cores, which often sacrifice energy efficiency for speed through frequency turbo boosts. By virtually fusing multiple cores into a “super core,” Intel proposes a hybrid software-hardware solution that aggregates instructions-per-cycle (IPC) capabilities, enabling energy-efficient, high-performance computing. This essay explores the concept, mechanisms, benefits, and implications of Software Defined Super Cores (SDC), highlighting how they could transform modern processors.

The background of this patent underscores persistent challenges in processor design. High-IPC cores, while powerful, depend heavily on process technology node scaling, which is becoming increasingly difficult and costly. Larger cores also reduce overall core count, limiting multithreaded performance. Hybrid architectures, like those blending performance and efficiency cores, attempt to balance single-threaded (ST) and multithreaded (MT) needs but require designing and validating multiple core types with fixed ratios. Intel’s SDC circumvents these issues by creating virtual super cores from neighboring physical cores—typically of the same class, such as efficiency or performance cores—that execute portions of a single-threaded program in parallel while maintaining original program order at retirement. This gives the operating system (OS) and applications the illusion of a single, larger core, decoupling performance gains from physical hardware expansions.

At its core, SDC operates through a synergistic software and hardware framework. The software component—potentially integrated into just-in-time (JIT) compilers, static compilers, or even legacy binaries—splits a single-threaded program into instruction segments, typically around 200 instructions each. Flow control instructions, such as conditional jumps checking a “wormhole address” (a reserved memory space for inter-core communication), steer execution: one core processes odd segments, the other even ones. Synchronization operations ensure in-order retirement, with “sync loads” and “sync stores” enforcing global order. Live-in loads and live-out stores handle register dependencies, transferring necessary data via special memory locations without excessive overhead (estimated at under 5%). For non-linear code, like branches or loops, indirect branches or wormhole loop instructions dynamically re-steer cores, using predicted targets or stored program counters to maintain parallelism.

Hardware support is minimal yet crucial, primarily enhancing the memory execution unit (MEU) with SDC interfaces. These interfaces manage load-store ordering, inter-core forwarding, and snoops, using a shared “wormhole” address space for fast data transfers. Cores may share caches or operate independently, but the system guarantees memory ordering and architectural integrity. The OS plays a pivotal role, provisioning cores based on hardware-guided scheduling (HGS) recommendations, migrating threads to SDC mode when beneficial (e.g., for high-IPC phases), and reverting if conditions change, such as increased branch mispredictions or system load demanding more independent cores.

The benefits of SDC are multifaceted. Energy efficiency improves by allowing longer turbo bursts or operation at lower voltages, as aggregated IPC reduces the need for frequency scaling. Flexibility is a key advantage: platforms can dynamically adjust between high-ST performance (via super cores) and high-MT throughput (via individual cores), adapting to workloads without fixed hardware ratios. Unlike prior multi-threading decompositions, which incurred 25-40% instruction overheads from replication, SDC minimizes redundancy, focusing on explicit dependencies. This could democratize high-performance computing, reducing reliance on advanced process nodes and enabling scalable designs in data centers, mobile devices, and AI accelerators.

However, challenges remain. Implementation requires precise software splitting to minimize communication overhead, and hardware additions, though small, must be validated for reliability. Compatibility with diverse instruction set architectures (ISAs) via binary translation is mentioned, but real-world deployment may face OS integration hurdles.

In conclusion, Intel’s Software Defined Super Cores patent heralds a paradigm shift toward software-centric processor evolution. By blending virtual fusion with efficient inter-core communication, SDC promises to bridge the gap between performance demands and hardware limitations, fostering more adaptable, efficient computing systems. As technology nodes plateau, innovations like this could define the next era of processors, empowering applications from AI to everyday computing with unprecedented dynamism.

You can see the full patent application here.
