Weebit Nano ReRAM Reaches Commercial Tape-Out Milestone

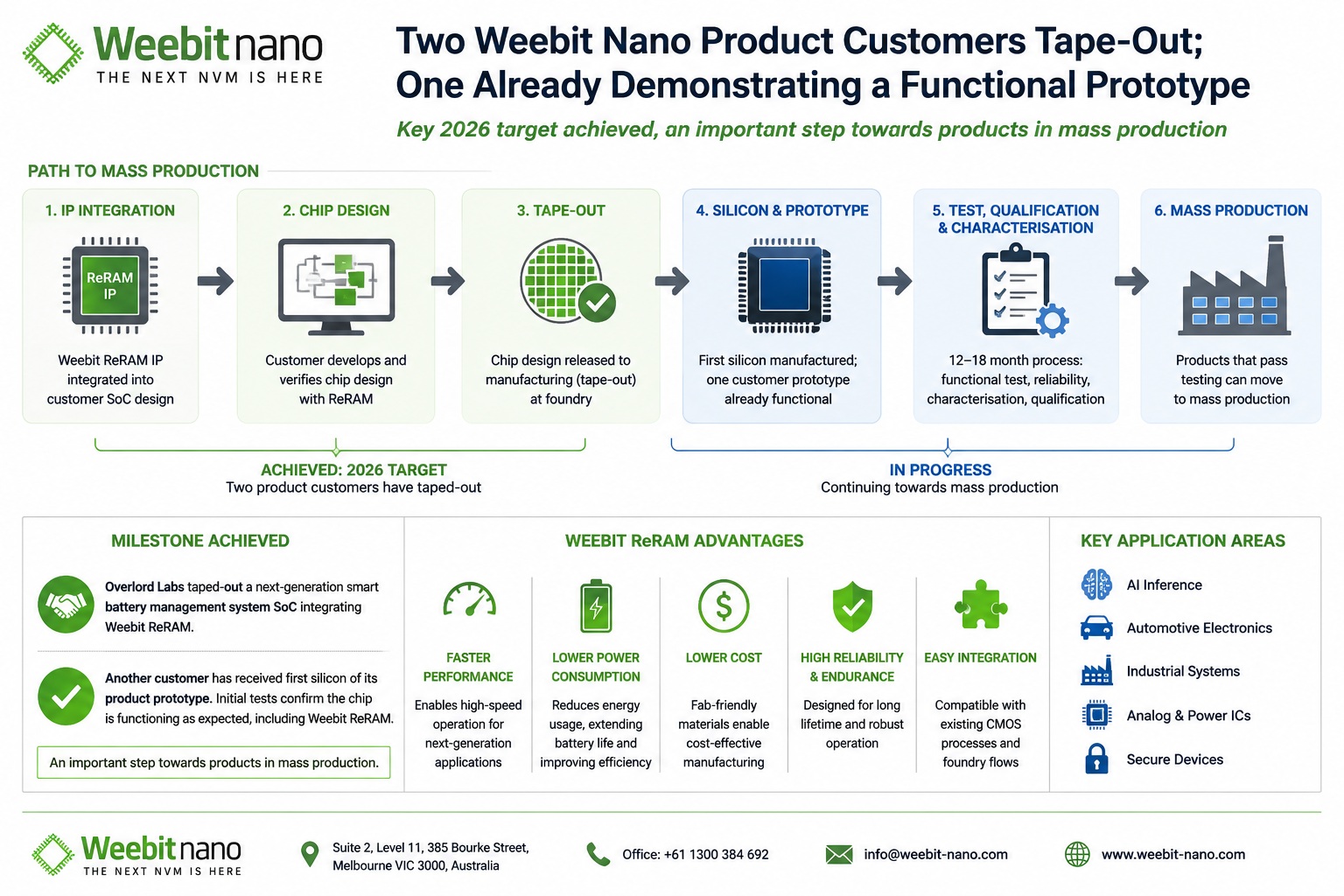

Weebit Nano has achieved a critical milestone in the commercialization of Resistive Random Access Memory (ReRAM) technology with the successful tape-out of two customer products integrating its embedded non-volatile memory IP. One of the products has already returned first silicon and demonstrated functional operation, validating both the manufacturability and operational integrity of the company’s ReRAM technology in real semiconductor devices.

The announcement represents more than a standard product update. In semiconductor development, tape-out is the final stage in the integrated circuit design process before fabrication begins. Once a design is taped out, the layout data is transferred to the foundry for mask generation and wafer manufacturing. Achieving this stage with multiple customers demonstrates that Weebit Nano’s ReRAM has progressed beyond laboratory validation into production-oriented semiconductor integration.

The first disclosed customer, Overlord Labs, integrated Weebit Nano’s ReRAM into a next-generation smart battery management system fabricated at DB HiTek. Smart battery management systems require highly reliable embedded memory capable of operating under demanding thermal and electrical conditions while consuming minimal power. Traditional embedded flash solutions become increasingly difficult to scale at advanced process nodes because of high programming voltages, process complexity, and integration costs. ReRAM offers a compelling alternative due to its low-power operation, simplified process integration, and high endurance characteristics.

Weebit Nano’s ReRAM architecture is based on resistive switching mechanisms that alter the resistance state of memory cells using conductive filament formation within dielectric materials. Unlike floating-gate flash memory, ReRAM does not require charge storage in insulated gates. This enables lower write voltages, faster switching speeds, and improved scalability for advanced nodes. The technology also supports back-end-of-line compatibility, reducing disruption to existing CMOS manufacturing flows.

According to the company, the Overlord Labs device is expected to deliver improvements in power consumption, reliability, and overall system efficiency once manufacturing and qualification are completed. These characteristics are particularly important in battery-powered and edge-computing applications where energy efficiency and data retention directly affect operational performance and product lifetime.

The second customer product has already reached a more advanced stage, with first silicon prototypes fabricated and tested. Initial electrical characterization confirmed that both the system functionality and embedded ReRAM blocks are operating as expected. This is a significant achievement because embedded memory integration often introduces process interactions that only become visible after fabrication. Functional first silicon substantially reduces technical risk and accelerates the path toward product qualification.

Although the successful prototype demonstration validates the technology, commercial semiconductor products still require extensive qualification before mass production. The company indicated that customers will continue characterization, reliability testing, and qualification processes that may take between 12 and 18 months. These evaluations typically include endurance cycling, data retention analysis, high-temperature operating life testing, electromigration studies, and radiation susceptibility assessments depending on target markets.

From a manufacturing perspective, Weebit Nano’s progress also demonstrates increasing foundry readiness for ReRAM adoption. Semiconductor foundries and integrated device manufacturers are actively searching for alternatives to embedded flash as process scaling becomes more challenging below 28nm geometries. Embedded flash integration at smaller nodes often requires additional masks and specialized process steps that increase wafer costs and complexity. ReRAM’s simpler integration profile provides economic advantages while supporting improved memory density and lower operating power.

The technology is particularly attractive for applications such as artificial intelligence inference accelerators, automotive microcontrollers, industrial automation systems, secure edge devices, and analog or power integrated circuits. AI edge systems benefit from non-volatile memory capable of retaining neural network parameters while minimizing standby power consumption. Automotive systems require high reliability across wide temperature ranges, while industrial systems prioritize endurance and long operational lifetimes.

Weebit Nano also highlighted that several additional customers are currently integrating its ReRAM IP into next-generation designs, with further tape-outs expected during the calendar year. The expansion of customer engagements suggests growing industry confidence in ReRAM as a commercially viable embedded memory technology.

Historically, emerging memory technologies have struggled to transition from research demonstrations to manufacturable semiconductor products because of integration complexity, reliability concerns, or insufficient ecosystem support. The successful tape-out and first silicon validation reported by Weebit Nano indicate that ReRAM may now be entering a meaningful commercialization phase. If qualification milestones continue successfully, the technology could become an increasingly important replacement for embedded flash memory in future low-power and high-performance semiconductor platforms.
