Images of interconnect stack that are suitable for publication?

jms_embedded

Well-known member
I am looking for an electron microscopy image of an interconnect stack showing the different metal layers, which I could use in an online article.

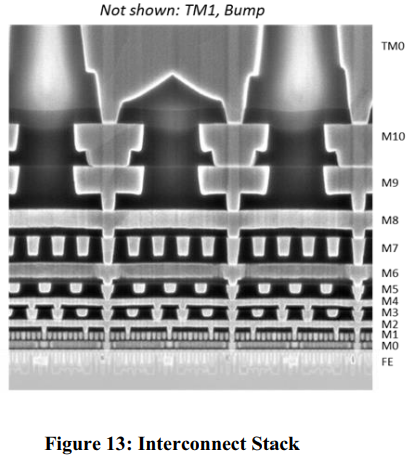

Something like this one from Intel's IEDM2017 paper on their 10nm process. I have made an inquiry with Intel, but I'm not too hopeful of hearing back from them. (I've tried dealing with IEEE permissions before, and it's a pain.)

Any suggestions?
