Taming Advanced Node Clock Network Challenges: Duty Cycle

As process nodes advance, circuit behavior becomes progressively more challenging to analyze and predict. Few systems reflect this challenge more clearly than the clock network. These large, complex networks no longer behave as ideal digital signals. Instead, they operate as distributed electrical systems shaped by non-linear transistor effects, interconnect parasitics, power supply interactions, and aging. And as operating margins continue to shrink, clock integrity increasingly determines whether an advanced design succeeds or struggles in silicon.

ClockEdge is a company that focuses on this class of problem with a unique approach that delivers deep insight, helping teams balance the often subtle and conflicting requirements to build reliable clock networks across all operating conditions. ClockEdge is publishing a series of white papers that examine real clock failure mechanisms and practical ways to address them. The first paper in this series focuses on one of the most subtle and consequential issues in advanced-node clocks: duty cycle distortion.

What is Clock Duty Cycle Distortion?

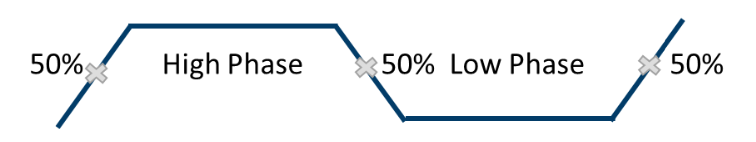

Clock duty cycle defines the proportion of time a clock signal remains high versus low. This parameter is critical in modern designs that rely extensively on half-cycle timing paths, aggressive clocking strategies and tight margin budgets. Even small deviations from an ideal 50 percent duty cycle can erode usable timing margins, increase sensitivity to variability, and expose failure modes that are difficult to diagnose late in the design flow. The figure below depicts an ideal 50 percent clock duty cycle.

As the clock signal propagates through a complex design, timing errors can create cumulative asymmetry in the clock duty cycle. These problems depend on process, voltage, temperature, aging, and operating history. The result is non-linear duty cycle evolution that typical delay-based abstractions cannot capture. The white paper provides significant detail about how these effects occur and how they accumulate.

The Problem with Traditional Approaches

The white paper goes into detail about why traditional approaches cannot find the subtle errors that create duty cycle distortion. You will learn how each process corner exhibits different duty cycle behavior, driven by variations in device characteristics, interconnect parasitics, and operating conditions.

It turns out static timing analysis solutions evaluate these corners using pre-characterized cell libraries and abstracted delay and slew models. This approach enables fast analysis, and it relies on estimates derived from simplified representations of circuit behavior rather than direct electrical simulation. The white paper goes into detail about how, at advanced geometries, this approximation-based methodology becomes increasingly inaccurate.

The use of duty cycle correcting circuits is also discussed. These circuits add or remove delay from the rising or falling transition until an expected duty cycle is reached. While duty cycle correcting circuits may help reduce duty cycle distortion, they add complexity to the clock design. This is not an elegant solution.

A More Effective Approach

The white paper discusses the ClockEdge Veridian vTiming solution in some detail. It explains how this solution computes duty cycle distortion using SPICE-accurate analysis across entire clock domains, including full interconnect parasitics and non-linear device effects. By directly computing clock waveforms, rather than relying on delay abstractions, it shows how vTiming accurately identifies duty cycle distortion, minimum pulse width violations, and rail-to-rail degradation.

The white paper provides a substantial amount of detail regarding what vTiming can find and help fix using real production designs. The effects of aging are also added to the analysis to provide an even more complete picture. The examples, plots, and analysis provided are quite eye-opening.

To Learn More

The clock network is one of the largest and most critical systems in any advanced design. It can enable performance and predictability or quietly undermine both. The technology developed by ClockEdge provides a fundamentally different view into the world of high-performance clock system design. Thanks to its SPICE-accurate analysis on vast clock networks, true design optimization is now possible.

If you are engaged in advanced-node, high-performance design this white paper is must read.  It will show you the way to higher performance, more predictability, and ultimately better profitability. You can access your copy of this new white paper here. And that’s how to tame advanced node clock network challenges: duty cycle distortion.
