Semiconductor Hardware Security Assurance

Semiconductor Hardware Security Assurance is the discipline and set of practices used to build justified confidence that an integrated circuit and its supporting hardware behave only as intended, resist realistic attacks, and can be trusted over their life cycle. It combines threat modeling, secure architecture, secure design and verification, secure manufacturing and provisioning, and post-silicon validation and monitoring, all tied together with evidence that supports an explicit assurance case.

Why it matters

Modern systems trust hardware roots at boot, isolate secrets in on-chip enclaves, and accelerate cryptography and AI models directly in silicon. A single weakness can enable persistent compromise below the operating system, large-scale key theft, or counterfeiting and overproduction that erode revenue and safety. Unlike software, hardware errors are expensive to fix after tape-out, so security must be designed in and evidenced early.

Threat taxonomy for chips

Insertion and tampering: Malicious logic, undocumented test features, or altered IP blocks introduced at RTL, gate level, or during mask handling.
Side channels: Leakage via power, EM, timing, or cache behavior that reveals secrets.
Fault injection: Voltage or clock glitches, laser or EM pulses, body biasing, temperature and aging used to bypass checks or extract keys.
Microarchitectural abuse: Speculation, caching, or coherence behaviors that break isolation.
Supply-chain attacks: Overproduction, recycled or remarked parts, counterfeit components, dopant-level changes, malicious chiplets.
Debug and test interface abuse: JTAG and scan chains used to read internal state or bypass protections.
IP piracy and cloning: Reverse engineering of bitstreams and layouts, key extraction from OTP or eFuses.
Field exploitation: Firmware rollback, insecure updates, weak attestation, insecure RMA paths.

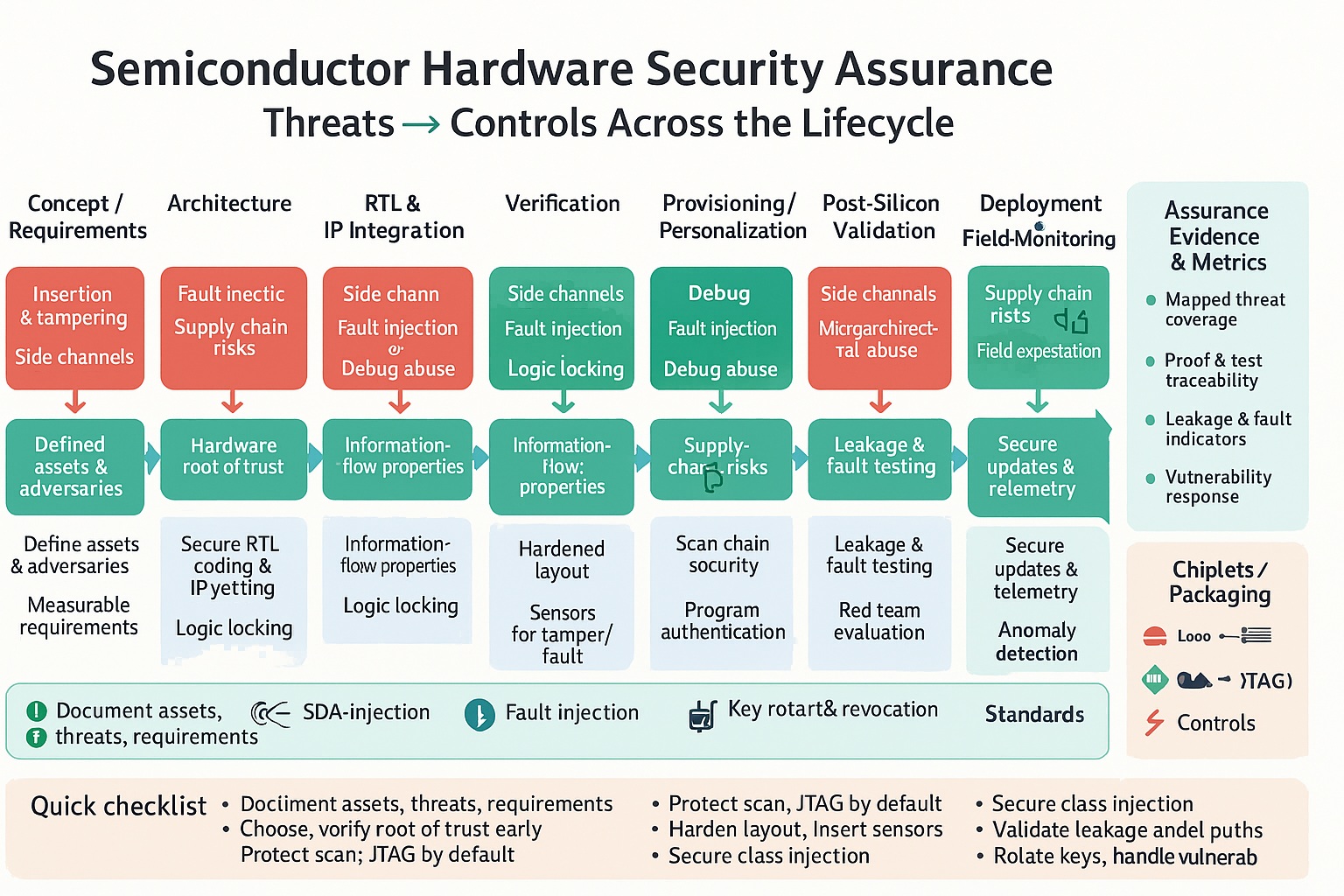

Life-cycle assurance framework

Concept and requirements
- Define assets, trust boundaries, adversaries, and misuse cases.
- Write measurable security requirements and acceptance criteria tied to use cases and standards.
Architecture
- Choose a hardware root of trust with secure boot and measured boot.
- Partition privilege domains, isolate keys, and define policy for debug, lifecycle states, and failure handling.
Design and integration (RTL to netlist)
- Apply secure coding rules for RTL, use formal information-flow controls, and lint for CWE-HW classes.
- Vet third-party IP for provenance and patch posture; require SBOM/HBOM and known-good configurations.
- Implement protections such as logic locking, scan security, SRAM PUFs or TRNGs, and anti-rollback.
Verification
- Property checking of security invariants, privilege separation, non-interference, and constant-time paths.
- Side-channel pre-silicon evaluation using leakage models and masking/hiding countermeasures.
- Trojan screening with structural checks, testability analyses, and anomaly detection on netlists.
Physical implementation
- Harden placement and routing for power and EM balance, shield sensitive nets, and protect clocks and resets.
- Prepare sensors for voltage, clock, temperature, and light to detect fault injection.
Manufacturing and test
- Use trusted mask handling, split responsibilities where feasible, and authenticate test programs.
- Lock scan access, require challenge-response for JTAG, encrypt test patterns if applicable.
- Track wafer-to-die provenance, lot genealogy, and enforce anti-overbuild controls.
Provisioning and personalization
- Secure key injection or key derivation from PUFs inside a trusted facility; bind identities to die and package.
- Burn lifecycle fuses with one-way transitions and protect RMA unlocks with cryptographic authorization.
Post-silicon validation
- Conduct TVLA-style leakage testing, fault-injection campaigns, microarchitectural fuzzing, and red-team evaluations.
- Verify boot and update paths, attestation, and rollback protections across all lifecycle states.
Deployment and field monitoring
- Enable secure firmware updates, signed telemetry, error reporting, and anomaly detection for tamper events.
- Maintain vulnerability response, key rotation, and end-of-life sanitization.

Common countermeasures and design patterns

Root of trust: Immutable ROM plus security controller, secure boot chain, stateful lifecycle management.
Key protection: PUF-based key derivation, anti-tamper shielding, volatile key storage, hardware erase on tamper.
Side-channel resistance: Masking, hiding with balanced logic and decoupling, randomization, and protocol-level blinding.
Fault tolerance: Redundant checks, temporal and spatial duplication, instruction/data flow signatures, glitch sensors.
Isolation: Memory protection for accelerators, cache partitioning, page-table hardening, and secure debug gating.
Test security: Scan obfuscation, scan segmentation, secure ATPG, authenticated JTAG, boundary-scan firewalls.
Anti-cloning and IP protection: Logic locking, watermarking, encrypted bitstreams and firmware, anti-rollback counters.

Assurance evidence and metrics

Assurance case: Structured argument tying threats to requirements, controls, and test results with traceability.
Coverage: Percentage of assets with explicit properties and proofs, and ratio of security tests to attack surfaces.
Leakage metrics: Fixed-vs-random TVLA pass rates, mutual information analysis results, and maximum observable bias.
Fault robustness: Fault model coverage and detected-to-injected ratios across voltage, clock, EM, and laser campaigns.
Manufacturing integrity: Provenance completeness, scrap reconciliation versus die count, and overbuild detection rate.
Vulnerability handling: Time to detect, disclose, patch, and recover, plus key revocation performance.
Performance and cost impact: Area, power, and latency overhead of security blocks versus design targets.

Standards, guidance, and ecosystems

While adoption varies by market, teams commonly draw from these families of guidance to shape requirements and audits:

Systems security engineering processes such as NIST SP 800-160.
Platform and firmware resilience practices similar to those in NIST SP 800-193.
Cryptographic module validation aligned with FIPS 140 for crypto blocks.
Common Criteria and Protection Profiles for secure elements and smartcards in high assurance markets.
Automotive and industrial guidance that adapts ISO 21434 and IEC 62443 concepts to silicon.
MITRE hardware CWEs for defect classes and test planning.
Supplier security programs that require HBOM/SBOM, traceability, and vulnerability disclosure commitments.

Chiplets, packaging, and supply-chain realities

Heterogeneous integration expands the attack surface beyond a single die. Chiplet ecosystems must authenticate die-to-die links, measure and attest constituent chiplets, and protect interposer traffic. At the packaging and test stages, enforce custody controls, signed test programs, and tamper-evident logistics. Overbuild and gray-market leakage are countered by cryptographic enablement and usage metering bound to legitimate SKUs.

EDA and automation for security

Security sign-off is maturing into a first-class tape-out milestone. Useful capabilities include information-flow tracking at RTL and gate level, structural Trojan checks, scan-chain security analysis, side-channel estimators tied to power grids, fault-injection simulation, and property libraries for common invariants such as one-way lifecycle transitions and constant-time crypto paths.

Organizational model

Effective assurance needs a dedicated hardware product security team with authority across architecture, design, manufacturing, and program management. Key practices include independent threat reviews, “two-person rule” for critical fuses and keys, red-team budgets, supplier security clauses, and a formal Go/No-Go security sign-off before tape-out.

Quick checklist

Document assets, threats, and security requirements with acceptance tests.
Choose and verify a root of trust and secure boot chain early.
Protect debug and scan by default and plan controlled service access.
Prove critical properties with formal methods and model leakage and faults.
Harden layout and insert sensors for tamper and glitch detection.
Secure provisioning with authenticated key injection or PUF-based derivation.
Validate with side-channel and fault campaigns and microarchitectural tests.
Monitor in the field, rotate keys when needed, and manage vulnerability disclosure.
