Taming Advanced Node Clock Network Challenges: Jitter

Clock jitter rarely fails in obvious ways. In advanced-node designs, its impact is often indirect, emerging through subtle timing uncertainty, interaction with power delivery noise, and compounding effects across large clock networks. These behaviors can quietly erode margin and predictability, even when conventional sign-off checks appear to pass. As a result, jitter that was previously absorbed through conservative margining now directly determines whether designs meet silicon targets or require costly late-stage rework, including frequency derates, ECO churn, or delayed product ramps.

As discussed, ClockEdge focuses on this class of problem with a unique approach that delivers deep insight, helping teams balance the often subtle and conflicting requirements to build reliable clock networks across all operating conditions. ClockEdge is publishing a series of white papers that examine real clock failure mechanisms and practical ways to address them. This installment focuses on the unique behaviors and risks associated with clock jitter.

Clock Jitter – What Changed?

Jitter was once dominated by isolated sources such as PLL phase noise or local buffer variation. In advanced design nodes today, it manifests as time-varying, distributed electrical behavior that evolves as the clock propagates through deep, heterogeneous clock networks. Power delivery noise, interconnect parasitics, non-linear device behavior, and topology-dependent amplification increasingly shape clock edge uncertainty over time across the system. The varied and locally influenced sources of jitter are illustrated in the figure below.

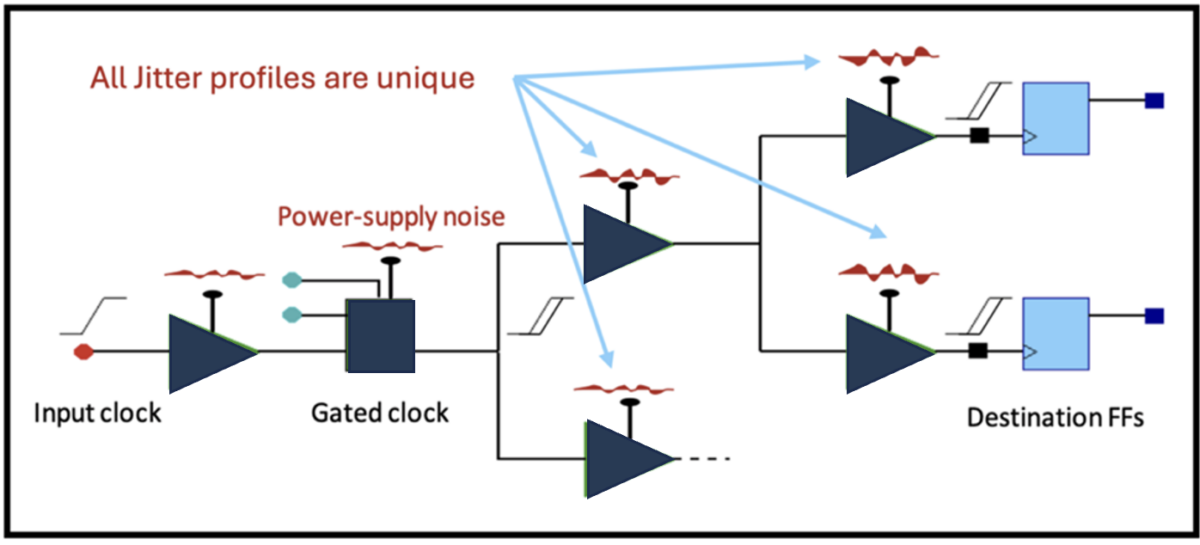

What the figure illustrates are distinct jitter profiles that emerge at different locations in the clock network due to local loading, power integrity conditions, and downstream topology. It is important to note that worst-case jitter often appears far from the original source.

As clocks traverse regions with different power domains, clock signals can amplify, attenuate, or reshape in non-intuitive ways. In multi-voltage designs, clock gating and localized activity bursts further exacerbate this behavior, creating correlated, time-dependent jitter patterns that cannot be captured through simple budgeting or worst-case assumptions.

Why Traditional Methods Fall Short

Conventional jitter metrics such as absolute jitter, period jitter, and cycle-to-cycle jitter provide useful measurements at individual observation points, but they do not capture how jitter evolves dynamically and spatially across a clock network. These metrics implicitly assume uniform propagation and limited interaction with the surrounding electrical environment.

Approaches such as static timing analysis (STA) and margin-based methodologies struggle to close jitter in advanced-node clock networks. It is important to understand that STA relies on delay abstractions and fixed uncertainty values that infer clock behavior rather than computing it directly, implicitly assuming that jitter is spatially uniform and temporally stable.

At advanced nodes, where jitter is dominated by localized power distribution effects, non-linear device behavior, and topology-dependent amplification, this assumption no longer holds. Accurate jitter closure requires moving beyond global budgets and worst-case assumptions to waveform-level, electrically accurate analysis across multiple levels of the clock network. The white paper examines these challenges in detail across per-gate, per-path and per-noise profile analysis.

How ClockEdge Addresses the Latest Jitter Challenges

The key capability offered by ClockEdge is to move beyond budgeting and inference to direct time-domain electrical computation.  The size of modern clock networks and the need to observe behavior over many cycles put conventional SPICE analysis out of reach. With its Veridian™ suite, ClockEdge delivers SPICE-accurate, full-clock electrical verification at scale.  Within the suite, vJitter directly computes clock waveforms over many cycles, capturing how jitter propagates, correlates, and interacts with real electrical effects across the entire clock network.

This large-scale, highly accurate analysis exposes subtle but highly impactful time-varying timing behavior that clock jitter can create. The white paper explains how these behaviors can be identified and addressed early, before they surface as late-stage design headaches. As described in the white paper:

By computing actual clock behavior rather than assuming it, ClockEdge allows design teams to achieve confident sign-off, preserve performance targets, and reduce the risk of late-stage surprises in advanced-node systems.

To Learn More

The clock network is the largest and most consequential network in most advanced designs. Improving visibility into clock behavior can directly impact performance, reliability and overall product predictability.  If you are involved in advanced chip design, this white paper explains how waveform-accurate jitter analysis enables more confident clock sign-off and reduces late-stage risk. You can access your copy of the white paper here. And that’s how to tame advanced node clock network jitter challenges.
