S2C Prodigy helps SoC teams run longer software workloads, connect real interfaces, and validate system behavior before first silicon.
Software-based RTL simulation remains indispensable for block-level verification and detailed debug. Runtime becomes a limiting factor, however, when teams need to boot an operating system, run long software regressions, or exercise realistic traffic across a large SoC. These workloads can require billions or trillions of design cycles, making simulation alone impractical.
Hardware emulation extends verification into early system-level RTL, with broad visibility and repeatable debug at MHz-class performance. As the RTL stabilizes, FPGA prototyping becomes the high-speed bridge to firmware, operating systems, real interfaces, and system-level workloads.
The S2C advantage: Prodigy combines scalable FPGA prototyping hardware with automated partitioning and control, multi-FPGA debug, host connectivity, ready-to-use interfaces, and enterprise resource management.
Figure 1. S2C Prodigy extends the pre-silicon workflow into higher-speed software bring-up, compliance testing, and system validation with real I/O.
Earlier integration reduces late-stage surprises and improves readiness for silicon bring-up. The approach is especially valuable for CPU and RISC-V, AI and HPC, automotive, communications, and cloud-oriented SoCs with large designs, long software workloads, or demanding I/O.
Software-based RTL simulation remains indispensable for block-level verification and detailed debug. Runtime becomes a limiting factor, however, when teams need to boot an operating system, run long software regressions, or exercise realistic traffic across a large SoC. These workloads can require billions or trillions of design cycles, making simulation alone impractical.
Hardware emulation extends verification into early system-level RTL, with broad visibility and repeatable debug at MHz-class performance. As the RTL stabilizes, FPGA prototyping becomes the high-speed bridge to firmware, operating systems, real interfaces, and system-level workloads.
The S2C advantage: Prodigy combines scalable FPGA prototyping hardware with automated partitioning and control, multi-FPGA debug, host connectivity, ready-to-use interfaces, and enterprise resource management.
Complementary Roles, with Prototyping as the High-Speed Bridge

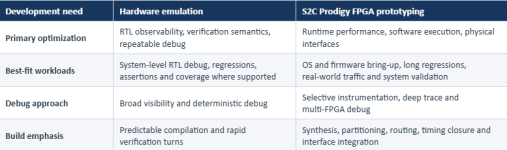

Emulation and FPGA prototyping remain distinct. Emulation is optimized for early RTL verification and observability; FPGA prototyping is optimized for runtime speed, software execution, and physical connectivity. For many projects, the handoff to prototyping is where hardware/software integration begins to resemble the final system.From Emulation to Prodigy
The objective is not to make emulation and prototyping identical. It is to reduce friction as designs, interfaces, test environments, and software workloads move through the pre-silicon flow. Prodigy provides the higher-speed environment for the stages that benefit most from long execution runs, real I/O, and software-driven validation. S2C is releasing a dual-mode solution for prototyping and emulation pretty soon.Figure 1. S2C Prodigy extends the pre-silicon workflow into higher-speed software bring-up, compliance testing, and system validation with real I/O.
Prodigy: A Complete Prototyping Environment
Prodigy is more than a prototyping board. Its hardware platforms and toolchain address the practical work required to turn RTL into a reusable system-validation environment.- - Scalable prototyping platforms. Prodigy Logic Modules, Logic Systems, Logic Matrix platforms, and the latest S8 family support a wide range of design sizes and deployment models. The S8-100 supports up to 100 million ASIC gates per FPGA and up to 400 million gates in a four-FPGA system.
- - Prodigy Player Pro. An integrated environment for compilation, automated and guided partitioning, debug setup, configuration, monitoring, and remote system control.
- - Multi-Debug Module Pro. Concurrent deep-trace debugging across multiple FPGAs helps teams investigate system-level behavior without treating each FPGA as an isolated debug target.
- - Prodigy ProtoBridge. High-bandwidth transaction connectivity between a host computer and the device under test supports hardware/software co-development and hybrid validation.
- - Prototype Ready IP. More than 100 ready-to-use daughter cards, speed bridges and memory model reduces custom interface bring-up with pre-tested cards, integrated rate adaptation, and reference flows.

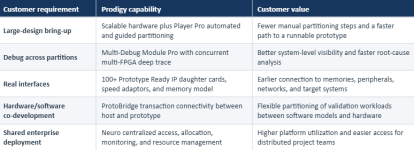

What an Enterprise Prototyping Platform Must Deliver
The commercial value comes from solving the implementation problems that otherwise delay prototype availability and limit its usefulness.Shift Software and System Validation Left
Once the RTL is stable enough for a prototype build, firmware, drivers, operating systems, and application software can begin running before first silicon. Teams can exercise real interfaces, run longer regressions, reproduce software-driven corner cases, and prepare system demonstrations while design changes are still comparatively inexpensive.Earlier integration reduces late-stage surprises and improves readiness for silicon bring-up. The approach is especially valuable for CPU and RISC-V, AI and HPC, automotive, communications, and cloud-oriented SoCs with large designs, long software workloads, or demanding I/O.
